Baby Lock Serger Teflon Flat Sole Foot #BLE8-TF

Machine Settings:

Needles: Overlock 1 or 2, Cover/Chain 1, 2 or 3, Upper knife: Engaged or disengaged, Stitch type: 2, 3 or 4 thread stitches, Single chain, double or triple needle coverstitch, Stitch width: Any, Stitch length: Any, Differential feed: 0.6 to 2, Sewing Speed: Normal

Instructions:

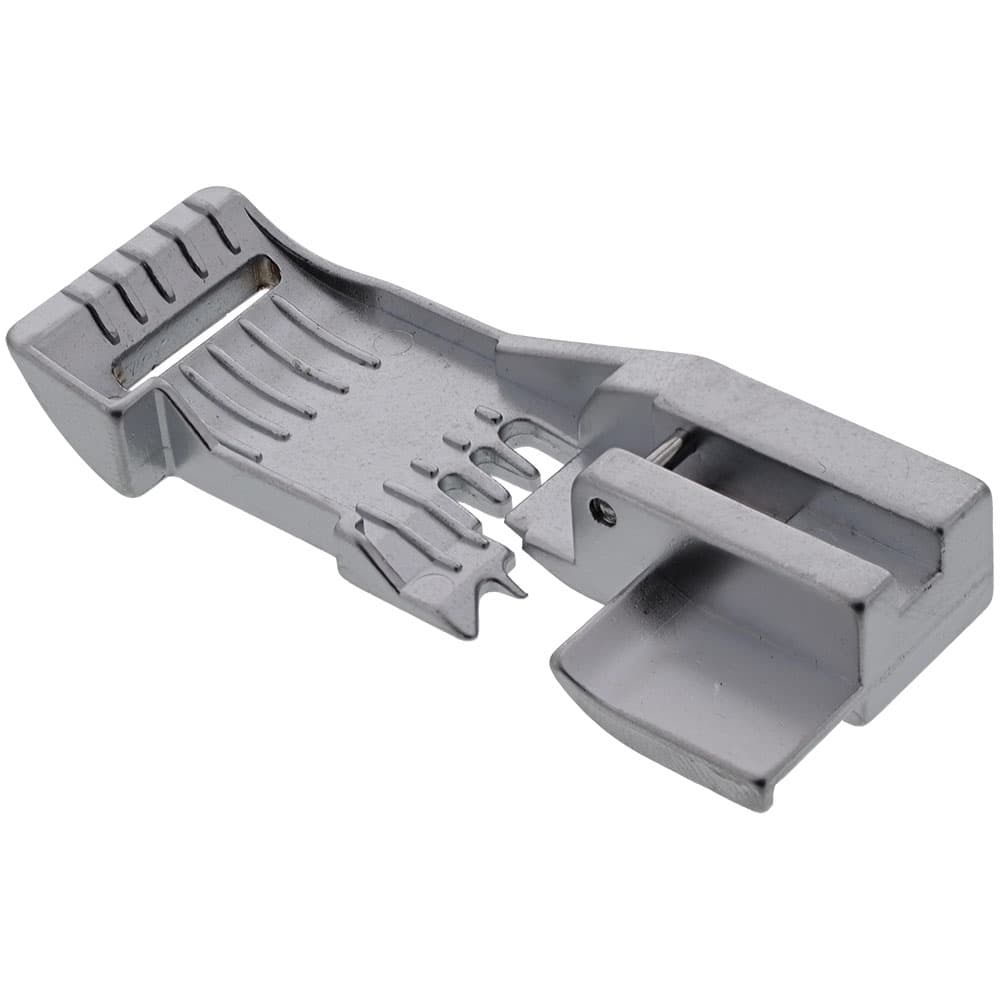

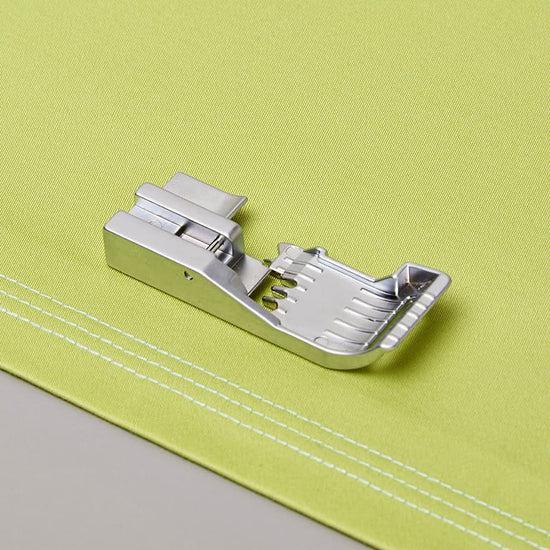

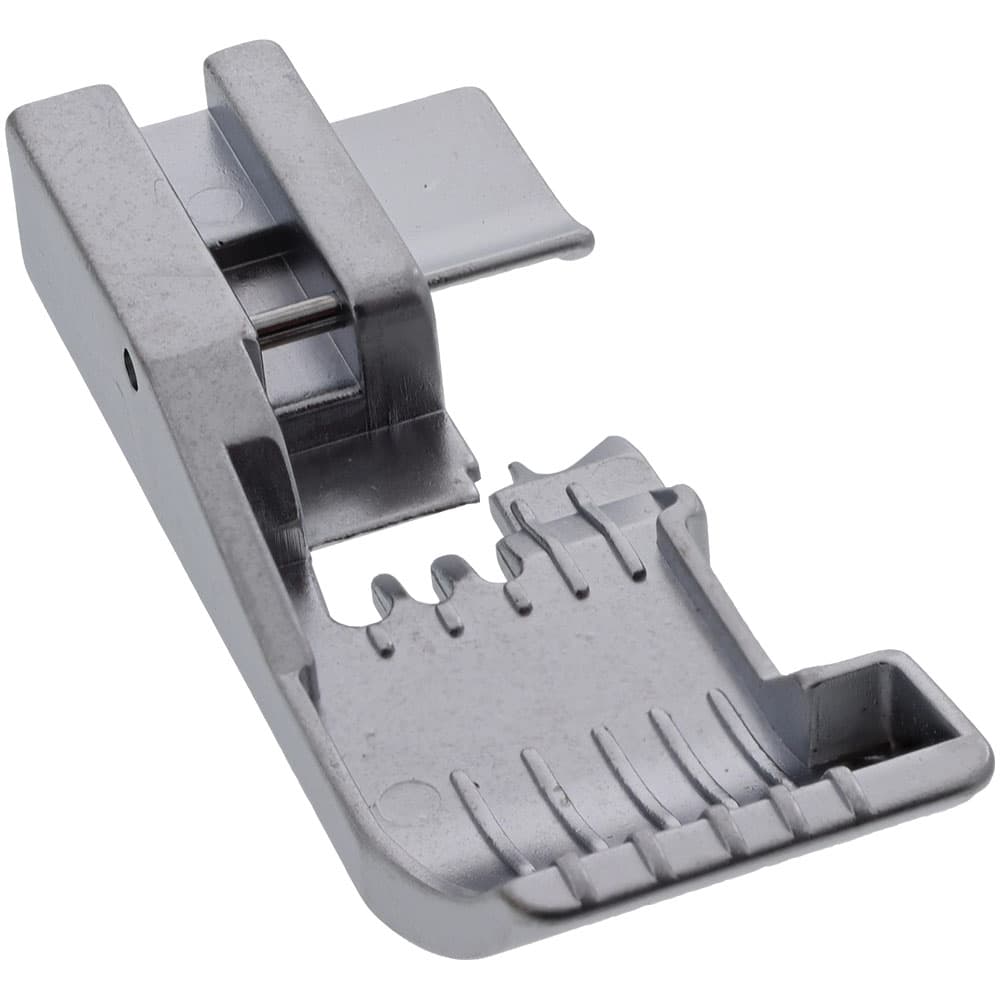

The raised markings on the toe of the foot are seam line guides, indicating needle positions to help guide your fabric for accurate seaming. The presser foot also has a tape sewing slot in the front. Insert the tape or ribbon into the slot, then under the sole of the foot.

To Release:

• Raise the presser foot lever.
• Lower the cutting blade.
• Raise the needles to the highest position.
• Push the presser foot release lever located at the back of the presser foot.
• Carefully turn the presser foot clockwise 90 degrees.
• Slide the presser foot to the rear to remove.

To Replace:

• Raise the presser foot lever.
• Lower the cutting blade.
• Raise the needles to the highest position.
